Muaj nuj nqi
CAS Nr .: | 7440-25-7 |
Txuj: | ASTM B 521-98 |
Purity: | Ntau dua lossis sib npaug li 99.9 feem pua lossis 99.95 feem pua |
Loj: | OD: 1.{1}}mm; WT: 0 2-5 0mm; L: 100-12000 hli |
Khoom Qib: | R05200, unalloyed tantalum, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si R05400, unalloyed tantalum, hmoov-metallurgy consolidation. |

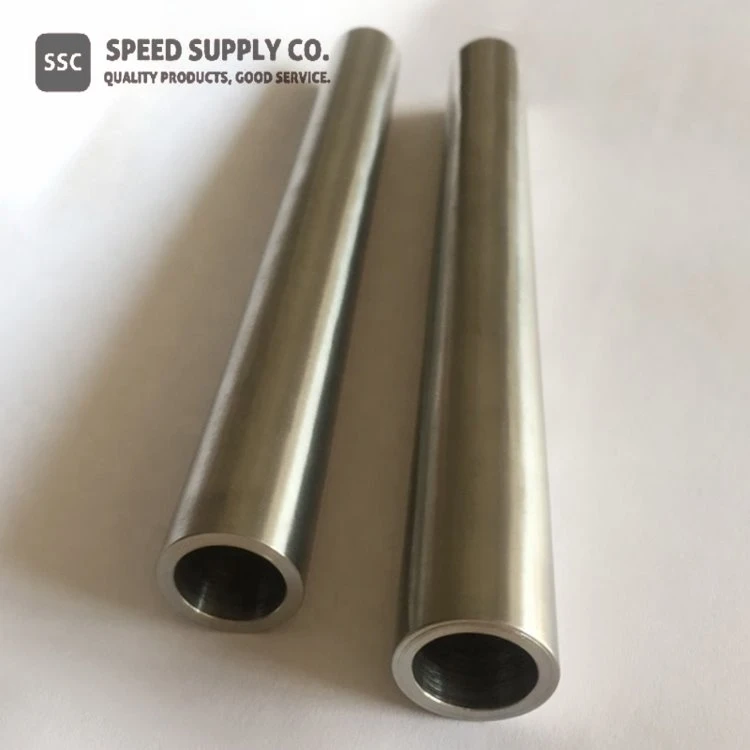

Tantalum Tube thiab Pipe Description
Tantalum yog cov hlau refractory uas yog ductile, yooj yim fabricated thiab heev tiv taus corrosion los ntawm acids. Nws kuj yog ib tug zoo conductor ntawm tshav kub, hluav taws xob thiab muaj ib tug siab melting point. Nws yog tshwj xeeb tshaj yog tiv taus cov tshuaj ntawm qhov kub thiab txias hauv qab 150 degree / 302℉ thiab tsuas yog yaj nrog hydrofluoric acid. Nws muaj qhov siab melting point thiab muaj peev xwm tsim cov txheej nyias nyias thiab tiv thaiv oxide rau capacitors.
SSC tshwj xeeb hauv kev muab seamless thiab welded tantalum raj thiab yeeb nkab nrog ntau qhov ntev thiab cov duab suav nrog puag ncig, duab plaub thiab square. Kev tsim cov seamless tantalum raj thiab yeeb nkab yog siv extrusion, raj txo, los yog sib sib zog nqus-kos duab nrog cov ntawv hlau. Txoj kev tsim khoom ntawm welded tantalum raj thiab yeeb nkab yog ua ntej tsim ib lub strip, ces ua rau hauv ib lub raj zoo, thiab tom qab ntawd welded sib koom ua ke nrog roj tungsten arc vuam.
Tantalum raj thiab yeeb nkab tuaj yeem ua tiav los tsim cov nplhaib, ntxhua khaub ncaws, lub tes tsho thiab cov ntaub qhwv.
Ntawm SSC, raj thiab yeeb nkab kuj tuaj yeem tsim los ntawm kev cai alloys rau kev lag luam thiab kev tshawb fawb daim ntawv thov thiab rau cov cuab yeej tshiab. Lwm cov duab muaj xws li bar lossis phaj daim ntawv, nrog rau kev cai machined duab thiab los ntawm lwm yam txheej txheem xws li nanoparticles thiab nyob rau hauv daim ntawv ntawm kev daws thiab organometallics. Peb kuj tsim tantalum li pas nrig, pellets, hmoov, pieces, granules, ingot, hlau, thiab nyob rau hauv cov ntaub ntawv compound, xws li oxide.
Muaj ob txoj hauv kev los ua tantalum thiab tantalum alloy raj thiab yeeb nkab. Ib qho yog los tsim cov raj seamless los ntawm extruding raj dawb paug, thiab lwm yam yog los tsim welded raj los ntawm kev kos cov txheej txheem tom qab inert gas tungsten arc vuam.
SSC muab tantalum thiab tantalum alloy raj thiab yeeb nkab nrog rau ob hom seamless thiab welded. Welded raj thiab yeeb nkab yog tsim los ntawm tantalum los yog tantalum alloy sawb thiab ntawv ci, welded hlab yuav muaj nyias phab ntsa thickness thiab loj OD.
Tantalum tubing nrog<5mm od="" can="" also="" be="" named="" as="" tantalum="" capillary,="" this="" is="" only="" available="" for="" pure="" tantalum.="" we="" can="" also="" provide="" tantalum="" capillary="" with="" small="" heights,="" that="" will="" be="" tantalum="" marker="">
Tailor-made tantalum alloy cov ntaub ntawv, xws li tantalum tungsten alloy, tantalum niobium alloy kuj muaj nyob ntawm SSC.
Tshuaj muaj pes tsawg leeg
Lub ntsiab | C | O | N | H | Fe | Mo | Nb | Ni | Si | Ti | W |
R05200 (feem pua, Max) | 0.0006 | 0.012 | 0.001 | 0.0005 | 0.0022 | 0.002 | 0.01 | 0.0012 | 0.0029 | 0.0012 | 0.003 |
R05400 (%) | 0.01 | 0.03 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 | 0.005 | 0.01 | 0.05 |
Muaj feem xyuam rau kev lag luam thiab kev siv ntawm Tantalum Tube thiab yeeb nkab
● Kev tsim cov tshuaj tiv thaiv cov hlab ntsha.
● Heat exchanger kav
● Condenser
● Bayonet cua sov
● Helical coils
● Thermocouple
● Cov raj tiv thaiv
● Electronics
● Cov Khoom Siv Kho Mob
● Nuclear Zog
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Chaw
Chemical Identifiers
Linear Formula | Ta |
MDL Number | TIAB SA 00011252 |
EC No. | 231-135-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23956 |
SMILES | [Ta] |
InchI ID nkag mus | InChI=1S/Ta |
InchI Key | GUVRBAGPIYLISA-UHFFFAOYSA-N |
Tantalum Tube thiab Pipe Properties (Theoretical)
Molecular Luj | 180.94 |
Qhov tshwm sim | Silvery-grey khoom |
Melting Point | 3017 degree |
Boiling Point | 5 458d |
Qhov ntom | 16.69 g / cm²3(20 degree) |
Solubility hauv H2O | N/A |
Crystal Phase / Qauv | : body-centered cubic (bcc) / : tetragonal |
Hluav taws xob Resistivity | 131 nΩ·m (20 degree) |
Electronegativity | 1.5 Pauling |
Kub ntawm Fusion | 36.57 kJ/mol |
Kub ntawm Vaporization | 753 kJ / mol |
Poisson tus ratio | 0.34 |
Tshwj xeeb kub | 140 J/kg · K |
Thermal conductivity | 57.5 W/m·K |
Thermal Expansion | 6.3 µm/m·K |
Vickers Hardness | 870-1200 MPa |
Young's Modulus | 186 GPA |
