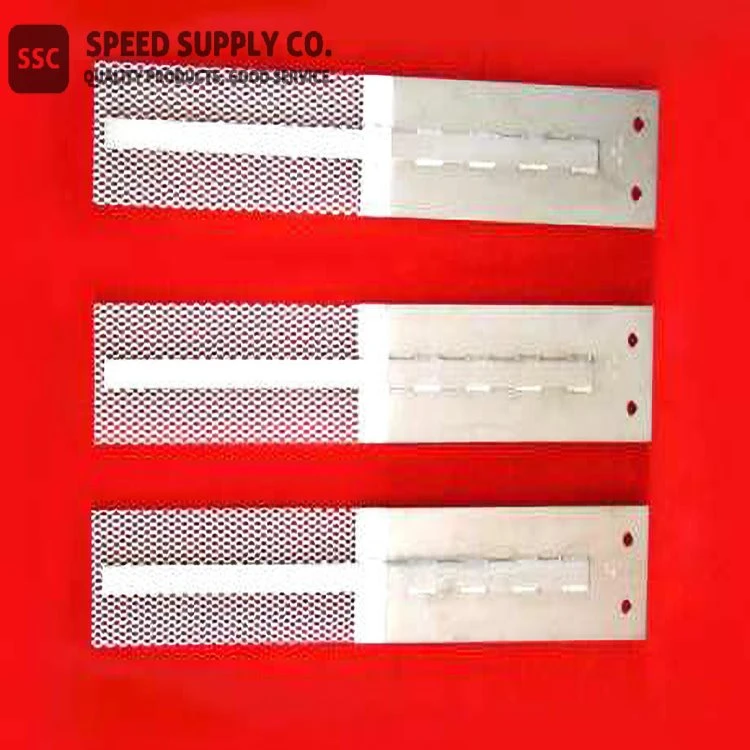

Platinized Niobium Anode

Platinized Niobium Anode piav qhia

Platinised niobium anodes muab cov yam ntxwv zoo heev electrochemical ntawm platinum nrog cov zoo corrosion zoo heev ntawm niobium.

Platinum yog cov khoom siv anode zoo heev vim nws cov khoom siv hluav taws xob siab thiab tus nqi qis. Tab sis raws li ib qho ntawm cov khoom muaj txiaj ntsig zoo, platinum feem ntau siv los ntawm electroplating ib txheej nyias dhau ntawm qhov siab corrosion kuj substrate los txo tus nqi. Niobium yog ib qho ntawm cov ntaub ntawv uas feem ntau siv los ua anode substrate.

Platinum coated (platinized los yog platinum clad) niobium hlau anodes yog lub teeb yuag, muaj zog anodes siv hauv electroplating, cathode tiv thaiv, dej kho, thiab lwm yam kev siv. Platinum coated niobium anodes feem ntau tam sim no muaj nyob rau hauv feem ntau ntim thiab tuaj yeem tsim hauv cov ntaub ntawv xws li daim ntawv, mesh, perforated phaj, pas nrig, lossis hlau.

Platinized Niobium Anode Specifications

Tso cai ua haujlwm voltage: Tsawg dua lossis sib npaug rau 12V

Cov duab: Qws, Hlau, Mesh

Qws ntev (mm): Tsawg dua lossis sib npaug li 3000

Rod dia. (mm): 12, 16, 19, 25

Hlau ntev (m): Tsawg dua lossis sib npaug li 100

Hlau dia. (mm): 1, 2, 3, 4

Mesh ntev (mm): Tsawg dua lossis sib npaug li 2500

Mesh dav (mm): Tsawg dua lossis sib npaug li 800

Platinum thickness (μm): 5, 7.5, 10

Customized ntau thiab tsawg kuj muaj.

Qhov zoo ntawm Platinized Niobium Anode

● Kev tsim cov duab anodes nyuaj ua tau

● Kev tuav tau yooj yim, txij nkawm qis

● Tsawg hluav taws xob tsis kam

● Cov yam ntxwv zoo heev corrosion

● Daim ntawv thov kuj muaj nyob rau hauv da dej uas muaj fluoride

● Lub neej ua haujlwm ntev ntawm qhov ceev tam sim no

● Dimensional stability

● Replating ua tau

Platinized Niobium Anode daim ntawv thov thiab lwm yam lag luam

● Internal tiv thaiv ntawm condensers, txheej txheem khoom, thiab lwm yam.

● Kev tiv thaiv sab hauv ntawm lub tank dej thiab cov kav dej

● Kev tiv thaiv ntawm cov pob zeb ua vaj tse
