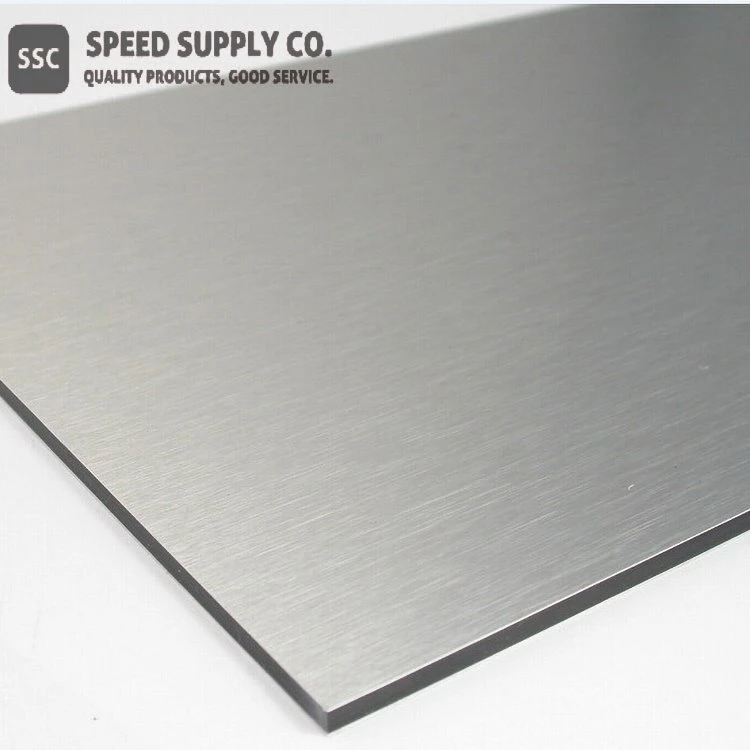

Niobium Zirconium Alloy Sheet thiab Board

Linear Formula: NbZr

Muaj nuj nqi

Linear Formula:	NbZr
Txuj:	ASTM B 393 Cov Lus Qhia Tshwj Xeeb
Purity:	99.9 feem pua, 99.95 feem pua, 99.99 feem pua
Loj:	Thickness 0 1-10 hli Dav 30-1000 hli Ntev 50-200
Nto:	Polished
Khoom Qib:	R4251 (Nb-1Zr) Reactor Qib R4261 (Nb-1Zr) Kev Lag Luam Qib

Niobium Zirconium Alloy Sheet thiab Board Description

SSC tuaj yeem tsim niobium zirconium alloy hauv ntau qhov sib piv ntawm Nb: Zr. Kev cai alloy cov ntaub ntawv kuj muaj. Advanced tshuaj ntsuam xyuas yog muaj rau tag nrho cov khoom alloy los ntawm cov kev qhia zoo tshaj plaws xws li X-ray fluorescence (XRF), glow discharge mass spectrometry (GDMS), thiab inert gas fusion. Thov thov ib daim ntawv tsocai saum toj no kom tau txais cov ntaub ntawv tus nqi raws li koj qhov kev qhia tshwj xeeb rau cov alloy muaj pes tsawg leeg thiab daim ntawv.

Niobium zirconium alloy daim ntawv thiab board ua haujlwm zoo nyob rau hauv corrosion mob & kub kub. Nws tuaj yeem siv rau hauv kev lag luam chemical, electroplate, kev kho mob, aviation, thiab lwm yam.

Cov txheej txheem machining ib txwm tuaj yeem siv rau niobium, txawm li cas los xij nws muaj kev nyiam rau gall, tsim kua muag thiab weld rau lub ntsej muag ntawm cov cuab yeej txiav, uas ua rau cov cuab yeej tsim thiab xaiv cov roj nplua nyeem tseem ceeb heev. Ob leeg carbide thiab high-speed steel cov cuab yeej yuav siv tau, txawm hais tias lub siab nyiam rau gall yog ntau dua nrog cov cuab yeej carbide. Dej-soluble txiav cov roj uas muaj leej faj los yog chlorine yog nyiam rau feem ntau machining cov hauj lwm ntawm niobium, tshwj tsis yog nyob rau hauv tig, qhov twg ib tug soluble-roj emulsion yog txaus siab. Ib qho dilute soluble-roj emulsion raws li cov kua sib tsoo kuj pom zoo, uas yog qhov zoo dua rau kev ua tiav zoo.

Tshuaj muaj pes tsawg leeg ntawm Niobium Zirconium Alloy Sheet thiab Board

Cov ntsiab lus feem pua	R04251	R04261
Nb	98.6 - 99.2	98.1 - 99.2
Zr	0.8 - 1.2	0.8 - 1.2
Ta	0 - 0.1	0 - 0.5
W	0 - 0.030	0 - 0.050
Ti	0 - 0.020	0 - 0.050
Hf	0 - 0.020	0 - 0.025
O	0 - 0.015	0 - 0.020
C	0 - 0.010	0 - 0.020
Mo	0 - 0.010	0 - 0.010
N	0 - 0.010	0 - 0.010
Si	0 - 0.0050	0 - 0.010
Ni	0 - 0.0050	0 - 0.0050
Fe	0 - 0.0050	0 - 0.0050
H	0 - 0.0015	0 - 0.0015

Mechanical Properties ntawm Niobium Zirconium Alloy Sheet thiab Board

Qib	Qhov kawg Tensile Strength, min, psi (MPa)	Yield zog (0.2 feem pua offset), min, psi (MPa)	Elongation hauv 1-in. (25.4- hli) gage length, min, feem pua
			0.010 in. or Greater	Tsawg dua 0.010 nyob rau hauv.
Hom 3 thiab 4	28 000 (195)	18 000 (125)	20	15

Niobium Zirconium Alloy Sheet Daim ntawv thov thiab lwm yam lag luam

● Kev Tshawb Fawb & Kev Tshawb Fawb

● Metallurgy

● Kho mob

● Kev lag luam tshuaj

● Electroplate

● Kev kho mob

● Aviation

Chemical Identifiers

Linear Formula	NbZr
MDL Number	N/A
EC No.	N/A
Pubchem CID	71355178
IUPAC npe	niobium; zirconium
SMILES	[Zr][Nb]
InchI ID nkag mus	InChI=1S/Nb.Zr
InchI Key	GFUGMBIZUXZOAF-UHFFFAOYSA-N

Niobium Zirconium Alloy Properties (Theoretical)

Compound Formula	NbZr
Qhov tshwm sim	Cov khoom siv hlau hauv ntau hom raj, ntawv / phaj, bar, ntawv ci, hlau, pas nrig, sputtering phiaj
Melting Point	2399 degree
Boiling Point	N/A
Qhov ntom	8.59 g / cm²³
Solubility hauv H2O	N/A
Tensile zog	330-620 MPa
Vickers Hardness	65-140
Monoisotopic pawg	182,811 g / mol
