PRODUCTS
Muaj nuj nqi
CAS Nr .: | 7440-03-1 |
Txuj: | ASTM B 393-05 |
Purity: | 99.9% ua |
Nto: | Polished |
Loj: | Thickness: 0.005" - 0.200" / Dav: 12" Max / Length: 10" Max |
Khoom Qib: | R04200-Type 1 -Reactor qib unalloyed niobium R04210-Type 2 -Cov qib lag luam tsis muaj niobium |

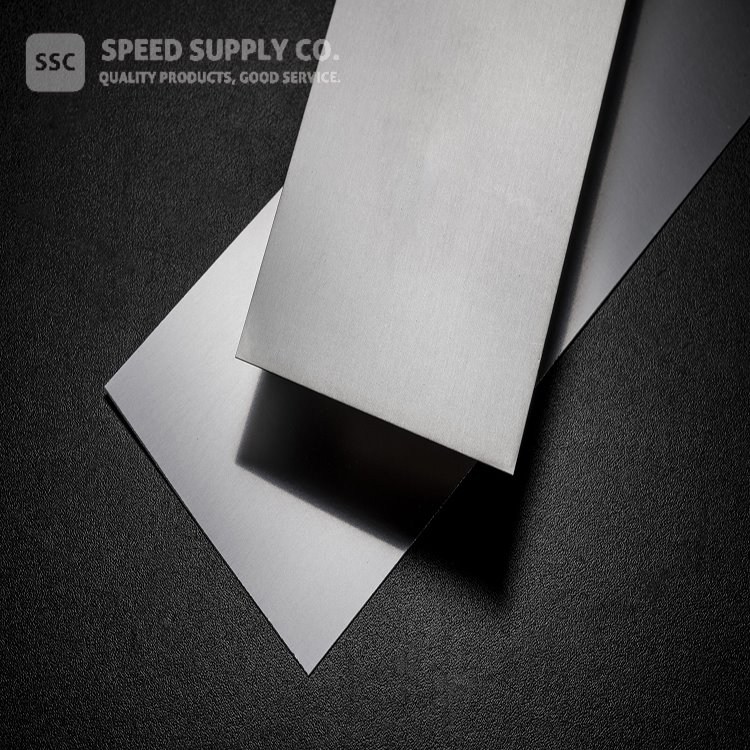

Niobium Sheet Description
SSC tshwj xeeb hauv kev tsim cov niobium ua cov ntawv hauv ntau qhov tuab thiab ntau thiab tsawg. Peb kuj tsim niobium ua cov pas nrig, hmoov thiab Cov Ntawv. Lwm cov duab muaj nyob ntawm kev thov.
Niobium daim ntawv yog featuring siab ductility, superconductivity, qib zoo ntawm biocompatibility, thiab siab tiv thaiv aqueous daws thiab hlau melts. Niobium daim ntawv feem ntau yog siv rau hauv kev lag luam pob zeb diamond ntau lawm, sib sib zog nqus daim ntawv thov, thiab tseem tshuaj thiab kev kho mob teb.
Peb muab niobium dov khoom nrog thickness 0.01mm txog 10mm, nrog rau niobium phaj (board), ntawv, ntawv ci, sawb & thiab ribbon.
Tshuaj muaj pes tsawg leeg
Cov feem pua | ||||||||||||
Khoom siv | Cov ntsiab lus tseem ceeb | impurities (tsis ntau tshaj li ib feem pua) | ||||||||||
Nb | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N | |
R04200 | Tseem tshuav | 0.004 | 0.004 | 0.002 | 0.005 | 0.005 | 0.002 | 0.05 | 0.012 | 0.0035 | 0.0012 | 0.003 |
R04210 | Tseem tshuav | 0.01 | 0.01 | 0.005 | 0.02 | 0.01 | 0.004 | 0.07 | 0.015 | 0.0050 | 0.0015 | 0.005 |
Lub cev khoom
| Qib | Tensile zog, psi (MPa), Ntau dua los yog sib npaug | Yield zog (0.2 feem pua offset), psi (MPa), Ntau dua los yog sib npaug | Elongation nyob rau hauv 1 "gage ntev, feem pua, Ntau tshaj los yog sib npaug rau | |
>=0.010" | <> | |||
R04200, R04210 | 18000 (125) | 10500 (73) | 20 | 15 |
Niobium Sheet Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Sintering tais thiab nkoj
● Superconductors
● Cov khoom siv kho mob
● Jet engine qhov chaw
● Teeb pom kev lag luam
● Muaj pob zeb diamond ntau lawm
● Daim ntawv thov sib sib zog nqus
● Tshuaj thiab tshuaj kho mob
● Capacitor qhov chaw
● Sputtering lub hom phiaj rau kev lag luam optic
● Cov khoom siv superconducting
● Cov khoom siv hluav taws xob lub teeb
● Lub tub yees
● Alloy ntxiv
● Electronics
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Nyias zaj duab xis tso tawm
● Material Science
● Aerospace
● Aviation
● Nuclear
● Zog
Chemical Identifiers
Linear Formula | Nb |
MDL Number | PAB 00011126 |
EC No. | 231-113-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23936 |
SMILES | [Nb] |
InchI ID nkag mus | InChI=1S/Nb |
InchI Key | GUCVJGMIXFAOAE-UHFFFAOYSA-N |
Niobium Sheet Properties (Theoretical)
Molecular Luj | 92.9 |
Qhov tshwm sim | Nyiaj |
Melting Point | 2468 degree |
Boiling Point | 4 742 ygo |
Qhov ntom | 8.57 g / cm33 |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 12.5 microhm-cm @ 0 degree |
Electronegativity | 1.6 Paulings |
Kub ntawm Vaporization | N/A |
Poisson tus ratio | 0.4 |
Tshwj xeeb kub | 0.064 Cal/g/K @ 25 degree |
Tensile zog | N/A |
Thermal conductivity | 0.537 W/cm/K @ 298.2 K |
Thermal Expansion | 7.3 µm/(m·K) |
Vickers Hardness | 1320 MPa rau |
Young's Modulus | 105 GPa |
Cim npe nrov: niobium ntawv, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
