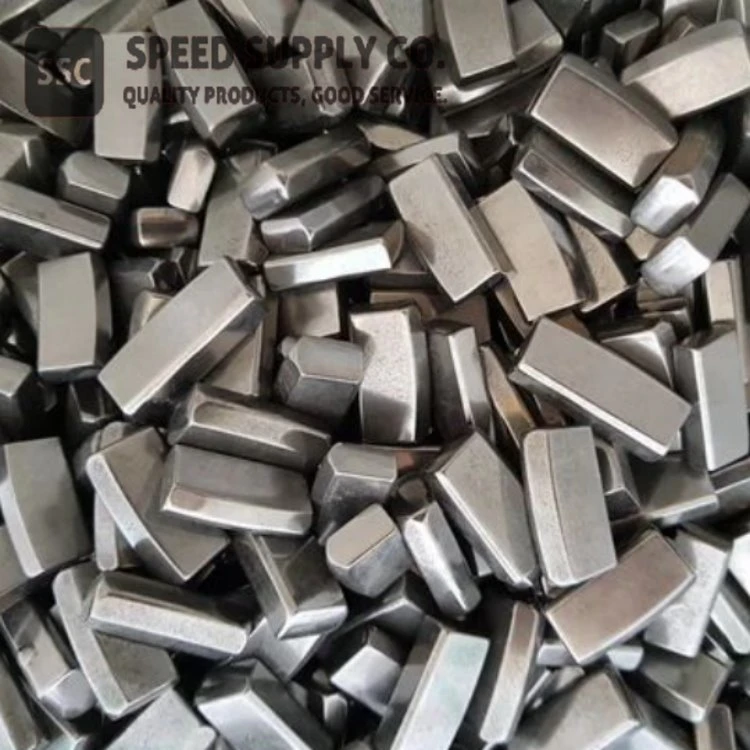

Tungsten Carbide Hlau
Zoo siab txais tos rau peb cov nplooj ntawv khoom mob siab rau Tungsten Carbide Hlau, cov khoom siv hloov pauv muaj npe nrov rau nws lub zog tshwj xeeb, ua haujlwm ntev, thiab ntau yam. Raws li cov chaw tsim khoom ntseeg siab, peb zoo siab los muab ntau yam khoom ntawm tungsten carbide, catering rau ntau yam kev lag luam thiab kev siv. Tshawb nrhiav vim li cas Tungsten Carbide Hlau yog qhov kev xaiv zoo tshaj plaws rau ntau tus kws tshaj lij thoob ntiaj teb.
Muaj nuj nqi
Nqe lus piav qhia:
Zoo siab txais tos rau peb cov nplooj ntawv khoom mob siab rau Tungsten Carbide Hlau, cov khoom siv hloov pauv muaj npe nrov rau nws lub zog tshwj xeeb, ua haujlwm ntev, thiab ntau yam. Raws li cov chaw tsim khoom ntseeg siab, peb zoo siab los muab ntau yam khoom ntawm tungsten carbide, catering rau ntau yam kev lag luam thiab kev siv. Tshawb nrhiav vim li cas Tungsten Carbide Hlau yog qhov kev xaiv zoo tshaj plaws rau ntau tus kws tshaj lij thoob ntiaj teb.
Nta:
● Unparalleled Hardness: Tungsten Carbide Hlau nthuav tawm qhov zoo tshaj plaws hardness, qeb qis dua pob zeb diamond ntawm Mohs nplai. Nws ua kom muaj kev tiv thaiv zoo tshaj rau hnav, puas, thiab deformation, ua rau nws zoo tagnrho rau cov ntawv thov raug mob hnyav.
● High Density: Nrog rau qhov ntom ntom piv rau cov kub, tungsten carbide muaj qhov tshwj xeeb loj, ua rau muaj kev sib npaug zoo, ruaj khov, thiab kev co damping zog. Qhov no ua rau nws haum rau precision cov cuab yeej thiab cov khoom.
● Exceptional Strength: Tungsten Carbide Hlau showcases impressive tensile lub zog, cia nws tiv taus hnyav loads, cuam tshuam, thiab kub kub. Nws ua kom lub neej ntev thiab kev ntseeg siab, txawm tias nyob rau hauv ib puag ncig xav tau.
● Corrosion Resistance: Tungsten Carbide Hlau yog qhov muaj zog tiv taus corrosion, ua kom nws tswj tau nws txoj kev ncaj ncees thiab kev ua haujlwm txawm nyob rau hauv ib puag ncig hnyav tshuaj.
● Thermal Stability: Cov khoom pov thawj thermal stability zoo heev, khaws nws cov khoom siv hluav taws xob thaum kub kub. Cov yam ntxwv no ua rau nws tsim nyog siv rau hauv cov ntawv thov kub.
Qib:
Peb muab ntau hom tungsten carbide qib, tsim kom tau raws li cov kev xav tau tshwj xeeb ntawm ntau hom kev lag luam. Peb qhov kev xaiv suav nrog:
Tungsten Carbide Standard Qib Daim Ntawv Qhia | |||||||
Kev lag luam Code | FCC Qib | Binder Cov Ntsiab Lus & Hom | Hardness (Ra) | Hardness (HV30) | Qhov ceev (g / cm3) | Yam tsawg kawg Transverse Rupture Strength (psi) | Loj Loj |
General Purpose Qib | |||||||
C2 | FC 3 | 6% Co | 92.0 | 1585 | 14.95 | 320,000 | Zoo |
C1 | FC 4 | 7.5% Co | 91.0 | 1460 | 14.70 | 330,000 | Zoo |
Hlau sib sau thiab hnav qib | |||||||
C10 | FC 10 | 9% Co | 90.0 | 1360 | 14.60 | 360,000 | Nruab nrab |
C11 | FC 11 | 12% Co | 89.5 | 1315 | 14.30 | 390,000 | Nruab nrab |
C12 | FC 12 | 15% Co | 88.0 | 1190 | 14.00 | 420,000 | Nruab nrab |
C13 | FC 13 | 20% Co | 85.0 | 955 | 13.60 | 450,000 | Nruab nrab |
C14 | FC 25 | 25% Co | 83.2 | 760 | 13.15 | 435,000 | Nruab nrab |
Qib Submicron | |||||||
C3 | FC 3M | 6% Co | 93.0 | 1740 | 14.95 | 375,000 | Submicron |
C2 | FC 10 M | 10% Co | 91.9 | 1570 | 14.50 | 450,000 | Submicron |
C1 | FC 12 M | 15% Co | 89.5 | 1315 | 14.00 | 530,000 | Submicron |
Rotary Drilling thiab Mining Qib | |||||||
C11 | FC 10 C | 10% Co | 88.6 | 1240 | 14.50 | 400,000 | Nyias |
C12 | FC11C ua | 10% Co | 87.8 | 1175 | 14.50 | 425,000 | Nyias |
Corrosion Resistant Qib | |||||||
- | FC 3 N | 6% Nws | 91.0 | 1460 | 14.95 | 275,000 | Zoo |
- | FC 10 N | 9% Nws | 89.5 | 1315 | 14.60 | 290,000 | Zoo |
- | FC 8 N | 8.5% Nws | 91.5 | 1515 | 14.50 | 300,000 | Zoo |
- | ua fc82 | 15% Ni+ Co | 89.9 | 1355 | 9.00 | 310,000 | Zoo |
Cov qib tshwj xeeb kom tau raws li cov neeg siv khoom tshwj xeeb kuj muaj. | |||||||
Daim ntawv:
Peb cov khoom siv tungsten Carbide hlau muaj nyob rau hauv ntau hom, suav nrog:
Rods thiab Bars:Haum rau machining, drilling, thiab cuab yeej siv.
● Txoj kab uas hla: Feem ntau muaj nyob rau hauv diameters li ntawm 1 hli mus rau 50 hli (0.04 ntiv tes mus rau 1.97 ntiv tes) los yog ntau dua, nyob ntawm seb cov ntawv thov tshwj xeeb thiab kev tsim muaj peev xwm.
● Length: Standard lengths feem ntau muaj, xws li 100 hli, 150 hli, los yog 300 hli (3.94 nti, 5.91 nti, los yog 11.81 nti). Kev cai ntev tuaj yeem tsim raws li koj xav tau.
Inserts thiab tswv yim:Siv rau hauv cov cuab yeej txiav, xws li laum, milling cutters, thiab tig inserts.
● Puab: Ntxig thiab cov lus qhia muaj nyob rau hauv ntau yam duab thiab geometries, nrog rau cov square, round, triangular, thiab custom designs.
● Size Range: Qhov ntau thiab tsawg rau cov ntawv ntxig thiab cov lus qhia tuaj yeem sib txawv nyob ntawm cov cuab yeej txiav tshwj xeeb thiab daim ntawv thov. Qhov ntau thiab tsawg tuaj yeem nyob ntawm ob peb millimeters mus rau ob peb centimeters, nrog rau qhov ntev tshwj xeeb kom haum rau cov cuab yeej tuav lossis cov ntawv thov.
Phaj thiab Sheets:Zoo tagnrho rau hnav-resistant Cheebtsam thiab cov khoom raug rau siab heev.
● Thickness: Thicknesses ntawm tungsten carbide daim hlau thiab cov ntawv tuaj yeem nyob ntawm ob peb millimeters mus rau ob peb centimeters ({0}}.04 ntiv tes rau 0.79 ntiv tes), nyob ntawm daim ntawv thov thiab yuav tsum tau hnav tsis kam.
● Dimensions: Standard qhov ntev tuaj yeem sib txawv, nrog ntau qhov ntau thiab tsawg suav nrog 100 mm x 100 mm, 150 mm x 150 mm, lossis 300 mm x 300 mm (3.94 ntiv x 3.94 ntiv tes, 5.91 nti x 5.91 ntiv tes, lossis 11.81 nti x 11.8 nti) . Qhov ntau thiab tsawg tuaj yeem tsim ua kom tau raws li cov kev xav tau tshwj xeeb.
Custom Shapes:Peb tuaj yeem tsim cov khoom siv tungsten carbide hauv cov duab kev cai thiab qhov ntau thiab tsawg kom tau raws li koj cov kev xav tau tshwj xeeb.
● Dimensions: Tungsten carbide Cheebtsam nyob rau hauv kev cai cov duab thiab qhov ntau thiab tsawg tuaj yeem tsim raws li koj qhov kev xav tau tshwj xeeb. Qhov luaj li cas thiab qhov ntau thiab tsawg ntawm cov duab kev cai yog tsim kom haum rau cov ntawv thov thiab cov qauv tsim tshwj xeeb.
Txoj kev tsim khoom:
Peb cov khoom siv tungsten Carbide hlau yog tsim los siv cov txheej txheem ua tib zoo tswj:
● Kev npaj hmoov: tungsten carbide hmoov yog tsim los ntawm kev sib xyaw ntawm cov tshuaj lom neeg thiab cov txheej txheem siv tshuab kom ua tiav qhov xav tau qhov loj me thiab muaj pes tsawg leeg.
● Kev Sib xyaw: Cov tungsten carbide hmoov yog tov nrog ib tug binding tus neeg sawv cev, feem ntau cobalt los yog npib tsib xee, los tsim ib homogeneous sib tov.
● Compaction: Cov sib tov yog compacted nyob rau hauv siab siab los tsim ib tug ntsuab compact nrog rau qhov xav tau cov duab.
● Sintering: Lub compact ntsuab yog raug rau ib tug high-kub sintering txheej txheem, qhov twg nws yog rhuab mus fuse cov hais ua ke, uas ua rau ib tug ntom thiab khoom tungsten carbide khoom.
Daim Ntawv Thov & Lwm Cov Kev Lag Luam:
Tungsten Carbide Hlau pom cov ntawv thov hauv ntau qhov kev lag luam, suav nrog:
● Metalworking: Txiav cov cuab yeej, xyaum, milling cutters, thiab hnav-resistant Cheebtsam.
● Mining thiab Kev Tsim Kho: Laum cov khoom, cov cuab yeej pob zeb drilling, cov cuab yeej siv tunneling, thiab cov khoom siv hauv kev tsim kho.
● Roj thiab Gas: Downhole drilling cuab yeej, valve Cheebtsam, thiab hnav-resistant qhov chaw.
● Automotive: Cov khoom xyaw cav, nres nres, thiab cov roj txhaj tshuaj.
● Aerospace: Aircraft engine Cheebtsam, turbine blades, thiab structural parts.
Health & Safety Information:
Thaum tungsten carbide yog cov khoom siv ruaj khov, qee qhov kev ceev faj yuav tsum tau ua thaum tuav lossis ua nws:
● Kev nqus pa: Tsis txhob nqus cov tungsten carbide plua plav lossis pa taws, vim lawv yuav ua rau muaj kev phom sij. Xyuas kom muaj qhov cua kom zoo thiab siv cov cuab yeej tiv thaiv ua pa thaum tsim nyog.
● Kev sib cuag ntawm daim tawv nqaij: Kev sib cuag ntawm daim tawv nqaij ncaj thiab ntev nrog tungsten carbide yuav tsum zam. Hnav cov hnab looj tes thiab khaub ncaws tiv thaiv kom txo tau qhov kev pheej hmoo ntawm kev khaus lossis rhiab heev.
● Kev Tiv Thaiv Qhov Muag: Thaum ua hauj lwm nrog tungsten carbide, hnav looj tsom iav dub los yog daim npog ntsej muag los tiv thaiv koj ob lub qhov muag los ntawm tej yam khoom los yog txaws.
● Machining thiab Sib Tsoo: Siv cov kev tswj xyuas engineering uas tsim nyog, xws li cov pa tso pa hauv zos, kom txo tau cov hmoov av tungsten carbide uas tsim tawm thaum lub sijhawm ua haujlwm lossis kev sib tsoo.
● Kev pov tseg pov tseg: pov tseg cov khoom pov tseg tungsten carbide lossis cov khoom pov tseg raws li cov cai hauv zos thiab cov lus qhia. Tsis txhob tso lawv mus rau ib puag ncig.
Thov xa mus rau Cov Ntaub Ntawv Kev Nyab Xeeb Cov Ntaub Ntawv (MSDS) lossis sab laj nrog tus kws tshaj lij kev nyab xeeb rau cov ntaub ntawv kev nyab xeeb thiab cov lus qhia tshwj xeeb rau koj daim ntawv thov.
Peb qhov zoo:
● Kev Ua Haujlwm Zoo: Peb tau cog lus los tswj cov qauv zoo tshaj plaws hauv peb cov khoom siv tungsten carbide. Txhua yam khoom tau raug kuaj nruj thiab tshuaj xyuas kom ntseeg tau tias nws cov kav ntev, kev ua haujlwm, thiab ua raws li cov lus qhia tshwj xeeb.
● Customization Peev Xwm: Peb nkag siab tias kev lag luam thiab kev siv sib txawv muaj cov cai tshwj xeeb. Peb muab cov kev xaiv customization kom tau raws li qhov ntev, cov duab, thiab cov yam ntxwv ntawm kev ua tau zoo, muab cov kev daws teeb meem rau koj cov kev xav tau tshwj xeeb.
● Kev txawj ntse thiab kev paub: Nrog ntau xyoo ntawm kev paub hauv kev lag luam, peb pab pawg kws tshaj lij muaj kev paub tob txog tungsten carbide thiab nws cov ntawv thov. Peb mob siab rau muab kev cob qhia thiab kev txhawb nqa los pab koj xaiv cov khoom tsim nyog rau koj cov kev xav tau.
● Kev xa tawm raws sijhawm: Peb ntsuas koj lub sijhawm thiab siv zog xa peb cov khoom kom sai. Peb cov txheej txheem tsim khoom tau zoo thiab kev thauj mus los yooj yim ua rau peb ua tiav cov xaj kom raws sijhawm, kom ntseeg tau tsawg kawg nkaus rau koj cov haujlwm.
FAQs:
Q: Dab tsi yog qhov txawv ntawm tungsten carbide thiab khoom tungsten?
A: Tungsten carbide yog cov khoom sib xyaw uas muaj tungsten thiab carbon atoms, thaum khoom tungsten hais txog cov hlau ntshiab tungsten. Tungsten carbide nthuav tawm superior hardness thiab hnav tsis kam piv rau cov khoom tungsten, ua rau nws tsim nyog rau kev lag luam.
Q: Puas tuaj yeem siv tungsten carbide?
A: Yog, tungsten carbide yog cov khoom siv rov ua dua tshiab. Nws tuaj yeem rov ua dua thiab ua tiav los tsim cov khoom siv tungsten carbide tshiab lossis siv rau hauv lwm cov kev lag luam, txo qhov kev thov rau cov ntaub ntawv nkauj xwb.
Q: Dab tsi yog lub neej ntev ntawm cov cuab yeej tungsten carbide?
A: Lub neej ntev ntawm tungsten carbide cov cuab yeej sib txawv nyob ntawm seb yam xws li daim ntawv thov, kev ua haujlwm, thiab kev saib xyuas. Txawm li cas los xij, vim nws qhov tshwj xeeb hardness thiab durability, tungsten carbide cov cuab yeej feem ntau muaj lub neej ntev dua piv rau cov khoom siv tsoos.
Q: tungsten carbide puas tuaj yeem ua kom ntse lossis rov kho dua?
A: Tungsten carbide yog ib qho nyuaj heev thiab nyuaj rau sharpen conventionally. Txawm li cas los xij, cov txheej txheem tshwj xeeb xws li pob zeb diamond sib tsoo lossis hluav taws xob tawm tshuab (EDM) tuaj yeem ua haujlwm los kho cov npoo txiav lossis kho cov cuab yeej tungsten carbide.
Q: Puas yog tungsten carbide haum rau cov ntawv thov kub?
A: Yog, tungsten carbide nthuav tawm cov thermal stability zoo, ua rau nws tuaj yeem tiv taus qhov kub thiab txias yam tsis muaj qhov cuam tshuam loj hauv kev ua haujlwm. Nws yog feem ntau siv nyob rau hauv daim ntawv thov qhov chaw siab kub tau ntsib.
Tshawb xyuas peb cov khoom siv ntau yam ntawm Tungsten Carbide Hlau thiab paub txog lub zog tsis sib xws, ua haujlwm ntev, thiab ntau yam uas lawv muaj. Hu rau peb hnub no los tham txog koj cov kev xav tau thiab nrhiav seb peb cov kev daws teeb meem tuaj yeem txhim kho koj cov haujlwm li cas.
