PRODUCTS

Tsev PRODUCTS Cov hlau tsis muaj hlau Manganese Paub meej

Manganese tooj liab

Spec: C86300, B505/B505M, B271/B271M, J461, J462, QQ-C-523, MIL-C-11866

Xa kev nug

Muaj nuj nqi

Spec:	C86300, B505/B505M, B271/B271M, J461, J462, QQ-C-523, MIL-C-11866

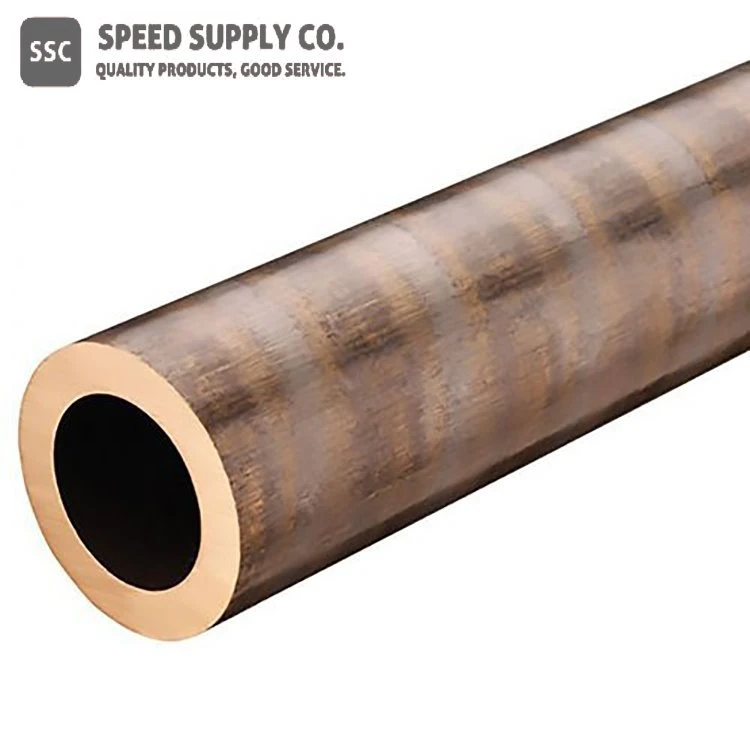

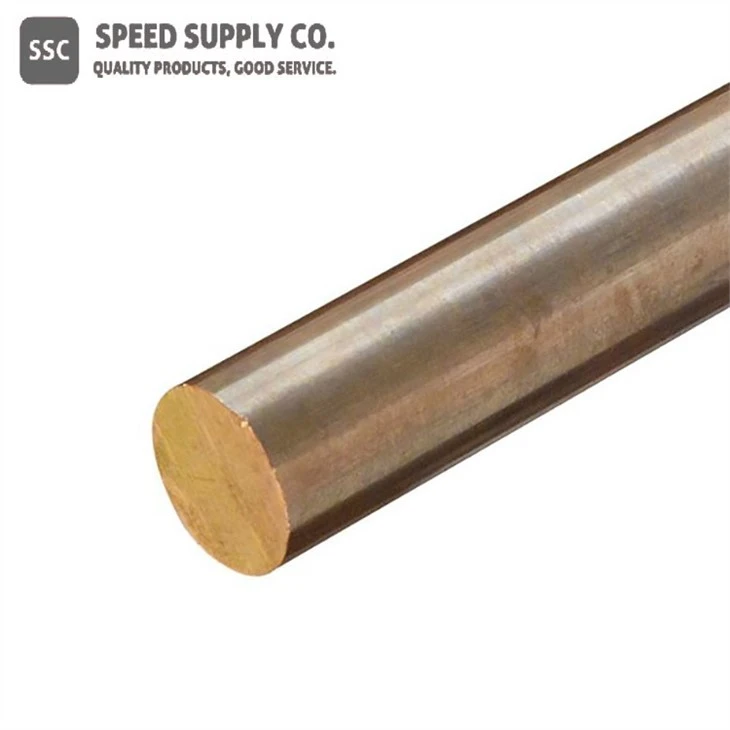

Cov duab:	Bar, Tube, Qws, Phaj, lossis Customized
Loj:	Customized

Manganese Bronze Description

Tus qauv qib ntawm manganese bronze alloy yog C 86300 uas muaj tooj liab, zinc, manganese, txhuas hlau thiab tin. Nws muaj cov khoom siv zoo heev thiab zoo corrosion kuj. Nws lub zog tensile yog tshaj 110, 000 ksi. Cov hlau no yog lub zog siab, tsis muaj cua sov kho tau tooj liab alloy npaj rau siv hauv cov ntawv thov uas xav tau kev sib xyaw ua ke zoo ntawm cov yam ntxwv zoo thiab cov kabmob siab siab rau kev qeeb qeeb thiab hnyav.

Tshuaj muaj pes tsawg leeg

Tooj	Zinc	Aluminium	Manganese	Hlau	Tin
60 - 68 feem pua	25 feem pua	3.0 - 7.5 feem pua	2.5 - 5 0 feem pua	2.0 - 4 0 feem pua	Tsawg dua lossis sib npaug rau 0.20 feem pua

Mechanical Properties

Mechanical Properties	Metric	Lus Askiv
Tensile yield zog	460 MPa rau	6 6700 psi
Modulus ntawm Elasticity	105 GPa	15 200 ksg
Kev qaug zog	170 MPa	24 700 psi
Hardness (Rockwell B)	65
Machineability	8-30 feem pua

Lub cev muaj zog

	Metric	Lus Askiv
Melting Point - Liquidus	923de ua	1693 degree F
Melting Point - Solidus	885 degree	1625 degree F
Qhov ntom	7.83 gm / cm3 ntawm 20 degree	0.283 lb/in3 ntawm 68 degree F
Specific Gravity	7.83	7.83
Hluav taws xob conductivity	0.046 MegaSiemens/cm ntawm 20 degree	8% IACS ntawm 68 degree F
Thermal conductivity	35.5 W / m ntawm 20 degree	20.5 Btu / sq ft / ft hr / degree F ntawm 68 degree F
Coefficient ntawm Thermal Expansion 68-572	20.7 · 10-6 ib degree (20-300 degree)	12 · 10-6 ib degree F (68-572 degree F)
Tshwj xeeb kub muaj peev xwm	377.1 J / kg ntawm 20 degree	0.09 Btu/lb/ degree F ntawm 68 degree F
Modulus ntawm Elasticity nyob rau hauv Tension	97900 MPa ua	14 200 ksg
Sib nqus permeability *	1.09	1.09
