Muaj nuj nqi
Khoom siv: | Cobalt-Nickel-Chromium-Tungsten Alloy |
Qhov tsos: | Silvery metallic khoom |
Txuj: | UNS R30188, AMS 5772, AMS 5801 (Vuam Hlau) |
Hom: | Zoo li, tiaj tus, square, round, zoo hlau, plated thiab un-plated |
Loj: | Customized |

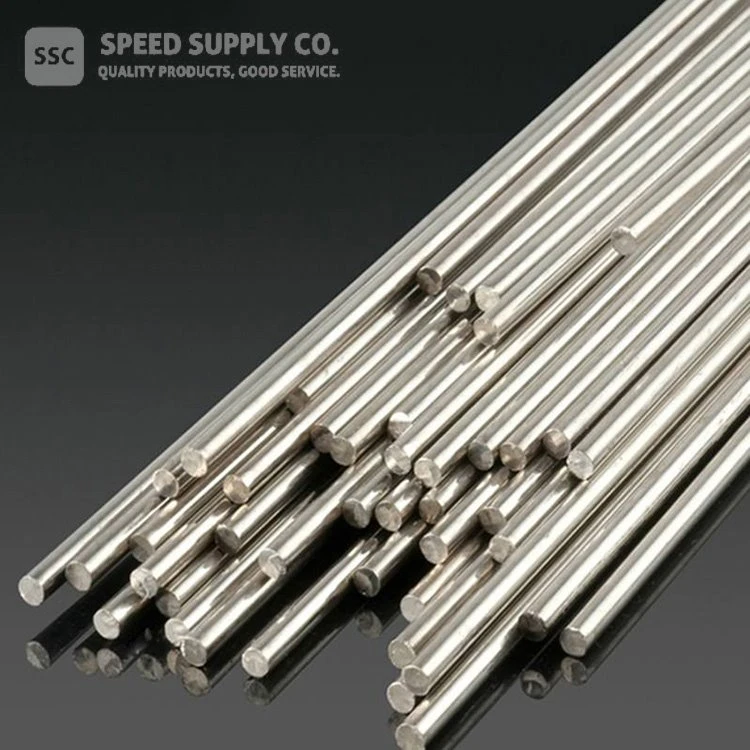

Haynes 188 Alloy HlauKev piav qhia
Haynes 188 alloy yog cobalt-nickel-chromium-tungsten alloy nrog zoo kub kub tensile zog, sulfidation thiab oxidation tsis kam mus txog 1095 degree (2000 degree F) rau lub sij hawm ntev raug. Nws tsis yog hnub nyoog hardenable tab sis tej zaum yuav txias ua hauj lwm kom ua tau siab dua tensile thiab yield zog. Nws teb zoo rau cov qauv kev sib sau thiab vuam cov txheej txheem.
Mechanical Properties
ANNEALED (Tswj)
● Qhov kawg Tensile Strength: 130 KSI min (896 MPa min)
● Lub zog muaj zog (0.2 feem pua offset): 60 KSI min (414 MPa min)
● Elongation: 45 feem pua min
Kub Tensile 1200 degree F (Hom)
● Qhov kawg Tensile Strength: 90 KSI min (620 MPa min)
● Lub zog muaj zog (0.2 feem pua offset): 35 KSI min (243 MPa min)
● Elongation: Gauges mus txog {{0}}.020 ntiv tes: 35 feem pua min; Gauges tshaj 0.020 nti: 20 feem pua min
Tshuaj muaj pes tsawg leeg
Lub ntsiab | Feem pua ntawm qhov hnyav |
Cov pa roj carbon | 0 05 - 0.15 feem pua |
Manganese | 1.25% max |
Silicon | 0 20 - 0.50 feem pua |
Chromium | 20 0 - 24.0 feem pua |
Nickel | 20 0 - 24.0 feem pua |
Tungsten | 13. 0 - 16 0 feem pua |
Lanthanum | 0 02 - 0.12 feem pua |
Boron | 0.015 feem pua max |
Hlau | 3% max |
Cobalt | Tshuav |
Nta
● Zoo fabricability thiab weldability
● Khaws zoo heev lub zog thiab ductility ntawm qhov kub thiab txias
● Zoo sulfidation kuj
● Zoo heev metallurgical stability ntawm qhov kub thiab txias
Lub cev muaj zog
Qhov ntom | 0.330 lb/in³ 9.14 g/cm³ |
Melting Range | 2375-2425 degree F 1300-1330 degree |
Tshwj xeeb kub | 0.097 ntawm 70 degree F, Bru/lb degree F 405 ntawm 21 degree, J/kg degree |
Permeability | 1.0007 ntawm 200 oersted |
Coefficient ntawm Expansion | 6.6 0-200 degree F, 10¯⁶ hauv/in• degree F |
Thermal conductivity | 84 Btu•in/ft²•h• degree FW/wm• degree |
Hluav taws xob Resistivity | 613 ohm•circ mil/ft 102.0 microhm-cm |
Haynes 188 Alloy Hlau Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Kev ua tshuaj lom neeg
● Av-based Gas Turbines
● Aerospace
● Tub rog
● Kev lag luam
● Kev Tshawb Fawb & Kev Tshawb Fawb
