Muaj nuj nqi
Khoom siv: | R60702, R60704, R60705 |
Purity: | 95% ~ 99.5 feem pua |
Txuj: | ASTM B551 Cov Lus Qhia Tshwj Xeeb |
Qhov tsos: | Silvery Khoom |
Loj: | Thickness 0 5-50mm, Txoj kab uas hla<> |

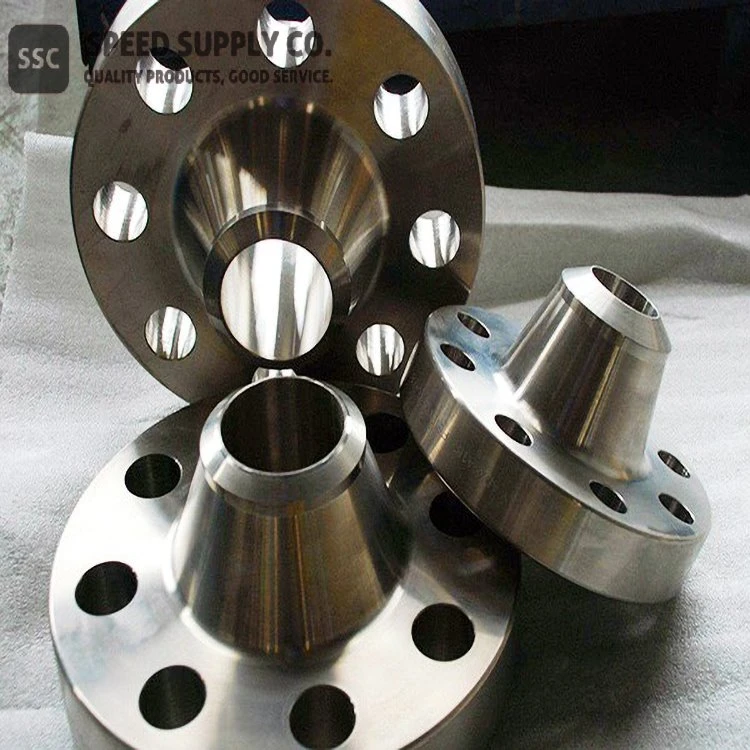

Zirconium Flange piav qhia
SSC tshwj xeeb hauv kev tsim cov purity siab zoo zoo li zirconium flanges. Flanges feem ntau yog siv los txuas cov kav dej lossis lub tog raj kheej. SSC muaj kev cai flanges nrog annealed los yog tawv tempers thiab yuav ua tau raws li feem ntau ntawm Mil spec lossis ASTM tus qauv. Feem ntau cov flanges muaj cov ridges sab nraud nrog lub voj voog kom cov ntsia hlau tuaj yeem muab kev nyab xeeb ntxiv thiab lub zog. Ntxiv nrog rau cov txheej txheem alloys, SSC kuj tseem tshwj xeeb hauv cov khoom siv corrosion-resistant alloys, siab kub daim ntaub ntawv, thiab kev cai cov duab thiab cov ntaub ntawv, nrog rau kev cai qhov chaw xyaum qhov chaw thiab threading.
Zirconium flanges yog qhov muaj txiaj ntsig zoo tshaj plaws thaum siv yog nyob rau hauv hydrochloric acid txheej txheem nrog kub siab tshaj qhov kub kub thiab qhov tsis muaj oxidizing impurities. Nyob rau hauv sulfuric acid, zirconium flanges yog resistant rau kub zoo tshaj boiling thiab nyob rau hauv acid concentrations txog li 70 feem pua. Zirconium tuaj yeem siv rau hauv txhua qhov ntau ntawm nitric acid txog 90 feem pua thiab kub txog 200 degree. Zirconium kuj tseem tiv taus rau feem ntau cov organic media thiab suav tias yog ib qho ntawm cov khoom siv tiv thaiv corrosion feem ntau hauv txhua qhov kev daws teeb meem acetic acid.
Txawm hais tias aeration tsis cuam tshuam qhov tsis kam ntawm zirconium flanges, txawm tias me me ntawm oxidizing media xws li ferric lossis cupric chlorides yuav ua rau nws cov corrosion kuj zoo heev. Tsis tas li ntawd, cov kua qaub nyob rau hauv lub xub ntiag ntawm oxidizing halide contaminants thiab tuaj yeem ceev tus nqi ntawm kev tawm tsam ntawm zirconium flanges txawm tias tsis tshua muaj siab. Kev siv zirconium flanges nyob rau hauv lub xub ntiag ntawm fluoride ions kuj tsis pom zoo, txawm nyob rau hauv tsawg concentrations.
Txheem Zirconium Flange Hom
● Qhov muag tsis pom Flange
● Weld Neck Flange
● Ntev Weld Neck Flange
● Npuag ntawm Flange
● Socket Weld Flange
● Lap Joint Flange
● Ntiv Nplhaib Flange
● Spectacle Dig Muag Flange
Tshuaj muaj pes tsawg leeg
Sn | Fe | Cr | Ni | Hf | Nb | Zn plus Hf | |
wb 702 | / | <> | <> | / | 1 ~ 2.5 feem pua | / | ~ 99.5 feem pua |
wb 704 | 1 ~ 2 feem pua | {{0}}.1 ~ 0.2 feem pua | {{0}}.1 ~ 0.2 feem pua | / | <> | / | ~ 97.5 feem pua |
wb 705 | 1 ~ 2 feem pua | <> | <> | / | <> | 2 ~ 3 feem pua | ~ 95.5 feem pua |
Lub cev muaj zog
Khoom siv | Xeev | Rm( Ntau dua lossis sib npaug ) / MPa | Rp0.2(Pa | A50mm (Ntau dua lossis sib npaug) / feem pua |
Zirconium 702 (UNS R60702) | Annealed | 379 | 207 | 16 |
Zirconium 704 (UNS R60704) | Annealed | 413 | 241 | 14 |
Zirconium 705 (UNS R60705) | Annealed | 552 | 379 | 16 |
Zirconium Flange Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Siv hauv kev lag luam nuclear vim nws tsis muaj peev xwm nqus tau cov neutrons
● Siv nyob rau hauv dye manufacturing rau nws zoo kawg corrosion kuj thiab inertness
● Siv hauv kev tsim cov polymers uas siv cov kua qaub muaj zog
● Siv nrog nitric acid rau kev tsim ammonium nitrate rau chiv
● Pulp thiab ntawv ntau lawm
● Marine engineering
● Roj thiab roj offshore drilling rigs
