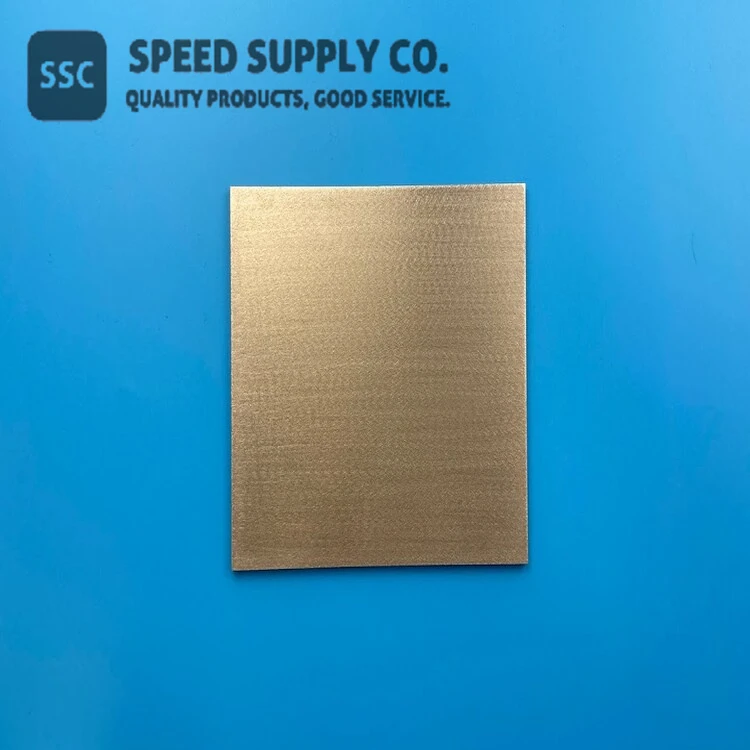

Molybdenum tooj liab

Taw qhia ntawm Molybdenum Copper Alloy thiab Copper Clad Molybdenum.

Molybdenum tooj liab alloys yog ib qho tshwj xeeb ua ke ntawm molybdenum thiab tooj liab, uas muab tshwj xeeb thermal thiab hluav taws xob conductivity, ua rau nws yog ib qho kev xaiv zoo heev rau kev thov kev siv. Cov khoom no muaj qhov siab melting point thiab qis thermal expansion coefficient, ua rau nws tiv taus thermal creep thiab deformation ntawm qhov kub thiab txias.

Ib qho ntawm cov yam ntxwv tseem ceeb ntawm molybdenum tooj liab alloys yog lawv cov hluav taws xob zoo heev. Lawv tau siv dav hauv kev lag luam hluav taws xob thiab hluav taws xob rau kev siv xws li hluav taws xob tiv tauj thiab kev sib txuas. Tsis tas li ntawd, molybdenum tooj liab alloys yog siv rau hauv cov khoom siv kho mob xws li kev cog hniav thiab cov cuab yeej phais mob vim lawv cov biocompatibility thiab hluav taws xob conductivity siab.

Hauv kev lag luam aerospace, molybdenum tooj liab alloys yog siv rau cov khoom kub kub xws li nozzle shrouds, combustion chambers, thiab heat exchangers. Cov khoom siv no kuj tseem siv rau hauv cov khoom siv hluav taws xob kub kub xws li cov khoom cua sov thiab cov khoom siv rwb thaiv tsev vim nws qhov kub thiab txias tsis kam thiab hluav taws xob conductivity.

Peb muab ntau yam ntawm molybdenum tooj liab alloys nrog sib txawv piv ntawm tooj liab thiab molybdenum. Qhov muaj piv yog Mo90Cu10, Mo85Cu15, Mo80Cu20, Mo70Cu30, Mo60Cu40, thiab Mo50Cu50. Txhua qhov sib piv muaj cov khoom tshwj xeeb xws li qhov ntom ntom, thermal conductivity, thiab coefficient ntawm thermal expansion. Peb pab neeg tuaj yeem pab koj xaiv qhov piv txwv zoo tshaj plaws kom tau raws li koj qhov kev thov tshwj xeeb.

Hauv cov ntsiab lus, molybdenum tooj liab alloys yog cov khoom siv ntau yam thiab ua haujlwm siab uas muaj qhov tshwj xeeb thermal thiab hluav taws xob conductivity. Lawv zoo haum rau ntau yam kev lag luam xws li aerospace, hluav taws xob thiab hluav taws xob, khoom siv kho mob, thiab cov khoom siv hluav taws xob kub kub. Tiv tauj peb hnub no kom paub ntau ntxiv txog yuav ua li cas molybdenum tooj liab alloys tuaj yeem pab tau koj daim ntawv thov xav tau.

Peb kuj muab Copper Clad Molybdenum nyob rau hauv ntau hom xws li Cu / Mo / Cu (CMC), Cu / MoCu / Cu thiab S-CMC.

Peb CMC yog cov khoom sib xyaw ua ke uas muaj cov txheej txheem molybdenum thiab ob txheej tooj liab-clad. Nws yog ntau yam vim nws kho tau CTE thiab siab thermal conductivity zog, ua rau nws yog ib qho zoo tagnrho cov khoom siv rau hauv cov dab dej kub, lub taub hau ntas, thiab microchannel txias rau luam tawm Circuit Board (PCBs). Txhua hom CMC cov ntawv tuaj yeem muab tau yooj yim stamped rau hauv cov khoom raws li koj qhov kev xav tau tshwj xeeb. Hom Cu: Mo: Cu composite suav nrog 13:74:13, 1:4:1, 1:3:1, 1:2:1 thiab 1:1:1.

Peb cov Cu / MoCu / Cu sandwich composite zoo ib yam li CMC thiab yog tsim los nrog MoCu alloy core txheej thiab ob txheej tooj liab clad. Qhov piv ntawm CTE ntawm Cu / MoCu / Cu tuaj yeem hloov kho, thiab nws muaj thermal conductivity ntau dua WCu, MoCu, thiab CMC. Txhua yam ntawm Cu / Mo70Cu / Cu nplooj ntawv tuaj yeem yooj yim stamped rau hauv cov khoom raws li koj qhov kev xav tau tshwj xeeb.

Peb cov khoom muaj xws li Cu/MoCu/Cu 1:4:1, Cu/MoCu/Cu 2:3:2, Cu/MoCu/Cu 1:1:1, thiab Cu/MoCu/Cu 2:1 : 2, txhua tus muaj cov khoom tshwj xeeb haum rau cov ntawv thov tshwj xeeb.

Peb kuj muab S-CMC, cov khoom sib xyaw ua ke nrog 5 lossis 7 txheej uas muaj cov thermal conductivity zoo dua thiab muaj peev xwm tiv thaiv kev cuam tshuam ntau dua li CMC. S-CMC kuj tsim nyog rau stamping, thiab peb cov khoom S-CMC suav nrog S-CMC (Cu: Mo: Cu: Mo: Cu 5: 1: 5: 1: 5), S-CMC (Cu: Mo: Cu: Mo:Cu 3:1:3:1:3), and S-CMC (Cu:Mo:Cu:Mo:Cu 6:1:2:1:6).

Tag nrho peb cov khoom siv Copper Clad Molybdenum yog cov khoom zoo thiab tuaj yeem ua raws li koj cov kev xav tau tshwj xeeb. Yog tias koj muaj lus nug txog peb cov khoom, thov koj xav tiv tauj peb.
