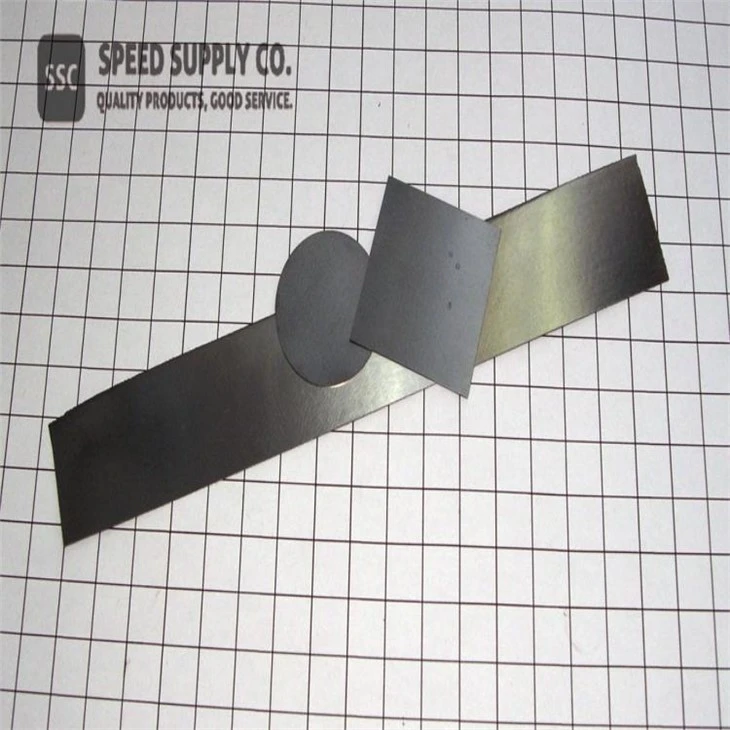

Beryllium Sheet Hlau

Nrhiav rau cov khoom siv txhim khu kev qha thiab zoo rau koj qhov project? Beryllium ntawv hlau tej zaum yuav zoo meej haum rau koj! Raws li lub chaw tsim khoom ntawm beryllium sheet hlau, peb muaj ntau yam kev xaiv uas tuaj yeem ua tau raws li koj cov kev xav tau tshwj xeeb thiab cov kev xav tau.

Vim li cas thiaj xaiv Beryllium Sheet Hlau?

Beryllium sheet hlau paub txog nws cov kav ntev, lub zog, thiab ntau yam. Nws yog resistant rau corrosion, tshav kub, thiab lwm yam hnyav ib puag ncig, ua rau nws yog ib tug zoo tagnrho cov ntaub ntawv rau siv nyob rau hauv ntau yam industries xws li aerospace, tiv thaiv, kev kho mob, thiab lwm yam.

Ntxiv mus, beryllium sheet hlau yog lub teeb yuag, uas ua rau nws yooj yim los tuav thiab thauj. Nws kuj muaj cov hluav taws xob zoo heev thiab thermal conductivity, ua rau nws yog qhov kev xaiv nrov rau kev siv hluav taws xob thiab hluav taws xob.

Peb Beryllium Sheet Hlau Khoom

Peb muab ntau yam ntawm beryllium sheet hlau cov khoom, suav nrog:

● Cov nplooj ntawv ntshiab Beryllium

● Beryllium tooj liab los xij

● Beryllium nickel nplooj ntawv

● Beryllium txhuas ntawv

● Kev cai beryllium sheet hlau khoom

Tag nrho peb cov khoom siv hlau beryllium yog tsim los ntawm cov ntaub ntawv zoo tshaj plaws thiab tsim kom tau raws li cov qauv kev lag luam nruj tshaj plaws. Peb muab cov kev cai daws teeb meem kom tau raws li koj cov kev xav tau tshwj xeeb thiab cov kev xav tau.

Specifications ntawm Beryllium Sheet Hlau Khoom

Pure beryllium nplooj ntawv:

● Purity: feem ntau 99 feem pua ​​lossis siab dua

● Ceev: 1.85 g / cm³

● Melting point: 1287 degree (2349 degree F)

● Thermal conductivity: 218 W / m * K

● Hluav taws xob conductivity: 35 feem pua ​​ntawm tooj liab

● Tensile zog: 670 MPa (97, 000 psi)

● Tawm lub zog: 620 MPa (90, 000 psi)

● Elongation: 10-15 feem pua

Beryllium Copper Sheets:

● Alloy muaj pes tsawg leeg: feem ntau muaj 0.5 feem pua ​​​​rau 3 feem pua ​​​​ntawm beryllium thiab tooj liab raws li lub hauv paus hlau, nrog rau lwm cov ntsiab lus xws li npib tsib xee lossis cobalt ntxiv rau me me

● Lub zog tensile: feem ntau yog nyob ntawm 100, 000 txog 150, 000 psi

● Lub zog tawm los: feem ntau yog nyob ntawm 60, 000 txog 130, 000 psi

● Elongation: feem ntau yog li ntawm 5 feem pua ​​​​rau 20 feem pua

● Kev tiv thaiv corrosion: zoo heev hauv ntau qhov chaw, suav nrog cov dej hiav txwv thiab cov kua qaub

● Hluav taws xob conductivity: zoo heev, nrog conductivity xws li 22 feem pua ​​​​rau 85 feem pua ​​​​ntawm cov tooj liab ntshiab

Beryllium Nickel Sheets:

● Alloy muaj pes tsawg leeg: feem ntau muaj 1.5 feem pua ​​​​rau 2.5 feem pua ​​​​ beryllium thiab npib tsib xee ua lub hauv paus hlau, nrog rau lwm yam xws li hlau, cobalt, los yog chromium ntxiv rau me me.

● Lub zog tensile: feem ntau nyob ntawm 160, 000 txog 200, 000 psi

● Lub zog tawm los: feem ntau yog nyob ntawm 120, 000 txog 170, 000 psi

● Elongation: feem ntau yog li ntawm 1 feem pua ​​​​rau 15 feem pua

● Kev tiv thaiv corrosion: zoo heev hauv ntau qhov chaw, suav nrog cov dej hiav txwv thiab cov kua qaub

● Thermal conductivity: zoo heev, nrog conductivity xws li 150 W / mK txog 230 W / mK

Beryllium Aluminium Sheets:

● Alloy muaj pes tsawg leeg: feem ntau muaj 0.2 feem pua ​​​​rau 2 feem pua ​​​​ntawm beryllium thiab txhuas raws li lub hauv paus hlau, nrog rau lwm cov ntsiab lus xws li tooj liab lossis magnesium ntxiv rau me me

● Lub zog tensile: feem ntau nyob ntawm 60, 000 txog 90, 000 psi

● Lub zog tawm los: feem ntau nyob ntawm 20, 000 txog 60, 000 psi

● Elongation: feem ntau yog li ntawm 5 feem pua ​​​​rau 15 feem pua

● Kev tiv thaiv corrosion: zoo heev hauv ntau qhov chaw, suav nrog cov dej hiav txwv thiab cov kua qaub

● Thermal conductivity: zoo heev, nrog conductivity xws li 200 W / mK txog 230 W / mK

Cov Ntaub Ntawv Kev Noj Qab Haus Huv & Kev Nyab Xeeb

Beryllium sheet hlau yog cov khoom siv phom sij uas tuaj yeem ua rau muaj kev phom sij rau kev noj qab haus huv thiab kev nyab xeeb yog tias tsis ua haujlwm zoo. Nov yog qee cov ntaub ntawv tseem ceeb ntawm kev noj qab haus huv thiab kev nyab xeeb kom nco ntsoov thaum ua haujlwm nrog beryllium sheet hlau:

● Beryllium yog tshuaj lom: Beryllium yog cov khoom muaj tshuaj lom heev uas tuaj yeem ua rau mob ntsws yog tias nqus tau. Cov neeg ua haujlwm uas nqus cov plua plav beryllium lossis pa taws tuaj yeem tsim kab mob beryllium (CBD), uas yog kab mob ntsws loj uas tuaj yeem ua rau muaj kev phom sij rau lub neej.

● Kov nrog kev saib xyuas: Beryllium sheet hlau yuav tsum tau saib xyuas kom tsis txhob raug beryllium plua plav lossis pa taws. Cov khoom siv yuav tsum tau muab khaws cia thiab thauj mus rau hauv cov thawv ntim, thiab cov neeg ua haujlwm yuav tsum hnav cov khoom tiv thaiv tus kheej tsim nyog (PPE) thaum tuav cov ntawv hlau beryllium.

● Kev ua pa: Beryllium sheet hlau yuav tsum tau siv rau hauv qhov chaw uas muaj cua zoo los tiv thaiv kev sib sau ntawm beryllium plua plav lossis pa taws. Cov tswv ntiav haujlwm yuav tsum tau teeb tsa lub tshuab tso pa hauv zos kom tswj tau cov beryllium raug.

● Kev cob qhia: Cov neeg ua haujlwm uas tuav cov ntawv hlau beryllium yuav tsum tau txais kev cob qhia tsim nyog txog kev noj qab haus huv thiab kev nyab xeeb uas cuam tshuam nrog kev raug beryllium. Lawv kuj yuav tsum tau kawm txog yuav ua li cas siv PPE thiab ua raws li cov txheej txheem tuav kom raug kom txo tau qhov raug mob.

● Kev Saib Xyuas: Cov tswv ntiav haujlwm yuav tsum saib xyuas qhov chaw ua haujlwm kom pom cov qib beryllium kom paub tseeb tias lawv nyob hauv qhov txwv tsis pub muaj kev nyab xeeb. Kev saib xyuas huab cua tsis tu ncua thiab kev saib xyuas kev kho mob ntawm cov neeg ua haujlwm tuaj yeem pab tiv thaiv cov teeb meem kev noj qab haus huv ntawm beryllium.

● Kev pov tseg: Beryllium sheet hlau yuav tsum muab pov tseg kom zoo los tiv thaiv ib puag ncig. Cov tswv ntiav haujlwm yuav tsum ua raws li tag nrho cov kev cai thiab cov lus qhia uas siv tau thaum pov tseg cov ntaub ntawv uas muaj beryllium.

Nws yog ib qho tseem ceeb uas yuav tsum tau ua raws li tag nrho cov lus qhia txog kev noj qab haus huv thiab kev nyab xeeb thaum ua haujlwm nrog beryllium sheet hlau los tiv thaiv kev raug mob thiab txo cov teeb meem kev noj qab haus huv. Tiv tauj peb kom paub ntau ntxiv txog peb cov khoom siv hlau beryllium thiab lawv cov txheej txheem tuav thiab kev nyab xeeb.

Vim li cas thiaj xaiv peb?

Peb yog cov chaw tsim khoom ntseeg siab thiab txhim khu kev qha ntawm beryllium sheet hlau khoom. Peb pab pawg kws tshaj lij muaj kev paub ntau xyoo hauv kev lag luam thiab mob siab rau muab koj cov kev pabcuam siab tshaj plaws thiab kev txhawb nqa rau koj.

Peb muab cov nqi sib tw thiab lub sijhawm hloov pauv sai, yog li koj tuaj yeem tau txais koj qhov project ua tiav raws sijhawm thiab hauv pob nyiaj siv. Tiv tauj peb hnub no kom paub ntau ntxiv txog peb cov khoom siv hlau beryllium thiab peb tuaj yeem pab koj li cas rau koj qhov project tom ntej.

FAQS:

Q: Dab tsi yog beryllium sheet hlau?

A: Beryllium sheet hlau yog ib hom ntawv nyias ua los ntawm beryllium lossis beryllium alloys. Nws yog feem ntau siv nyob rau hauv ntau yam lag luam vim nws cov khoom tshwj xeeb xws li lub zog siab, zoo corrosion kuj, thiab zoo heev thermal conductivity.

Q: Dab tsi yog cov txiaj ntsig ntawm kev siv beryllium sheet hlau?

A: Qee qhov txiaj ntsig ntawm kev siv beryllium sheet hlau suav nrog nws lub zog-rau-qhov hnyav piv, thermal conductivity zoo, zoo corrosion kuj, thiab hluav taws xob conductivity. Nws kuj tsis yog-sib nqus thiab muaj qhov nqus neutron tsawg, ua rau nws muaj txiaj ntsig zoo hauv kev siv nuclear.

Q: Dab tsi kev lag luam siv beryllium ntawv hlau?

A: Beryllium sheet hlau feem ntau yog siv hauv aerospace, tiv thaiv, kev kho mob, nuclear, thiab hluav taws xob kev lag luam vim nws cov khoom tshwj xeeb.

Q: Puas yog beryllium sheet hlau siv tau zoo?

A: Beryllium yog cov khoom siv tshuaj lom, thiab beryllium plua plav lossis pa taws tuaj yeem tsim teeb meem yog tias nqus tau. Yog li ntawd, nws yog ib qho tseem ceeb uas yuav tsum tau ua cov ntawv hlau beryllium nrog kev saib xyuas thiab ua raws li tag nrho cov kev tiv thaiv kev nyab xeeb thaum ua thiab siv.

Q: Can beryllium sheet hlau yuav welded?

A: Yog, beryllium sheet hlau tuaj yeem txuas tau, tab sis yuav tsum tau ceev faj tshwj xeeb vim yog beryllium toxicity. Vuam beryllium tsuas yog yuav tsum tau ua nyob rau hauv qhov chaw muaj cua zoo nrog cov khoom siv tiv thaiv tus kheej tsim nyog.

Q: Dab tsi yog qhov loj thiab thicknesses muaj rau beryllium sheet hlau?

A: Qhov ntau thiab tsawg ntawm beryllium ntawv hlau tuaj yeem sib txawv nyob ntawm cov khoom tshwj xeeb thiab daim ntawv thov. Tiv tauj peb kom paub ntau ntxiv txog peb cov khoom siv hlau beryllium thiab lawv qhov ntau thiab tsawg thiab tuab.

Q: Dab tsi yog lub sij hawm txhuas rau cov ntawv txiav txim beryllium?

A: Lub sij hawm txhuas rau cov ntawv txiav txim ntawm beryllium tuaj yeem sib txawv nyob ntawm seb cov khoom tshwj xeeb thiab ntau npaum li cas. Tiv tauj peb kom paub ntau ntxiv txog lub sijhawm txhuas rau peb cov khoom siv hlau beryllium.

Q: Kuv tuaj yeem xaj beryllium ntawv hlau li cas?

A: Tiv tauj peb kom paub ntau ntxiv txog peb cov khoom siv hlau beryllium thiab muab qhov kev txiav txim. Peb tseem tuaj yeem muab kev pabcuam thiab teb cov lus nug uas koj muaj txog peb cov khoom.

Cim npe nrov: beryllium ntawv hlau, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
