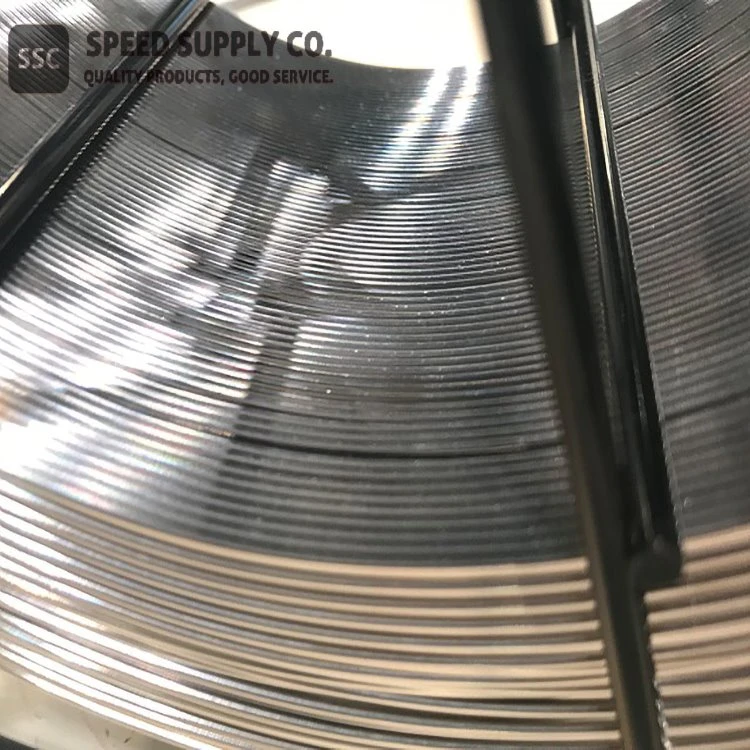

Phynox Hlau

Phynox HlauKev piav qhia

Phynox yog categorized li cobalt alloy thiab muaj cov yam ntxwv tshwj xeeb hauv tensile lub zog, tenacity, ductility thiab tsis kam mus corrosion. Tsis tas li ntawd nws yog biocompatible thiab yog li tsim tau zoo raws li cov khoom cog. Cov hlau yog tsim los ntawm 40% cobalt, 20% chrome, 16% npib tsib xee, thiab 7% molybdenum. Nws yog siv thaum twg siab tiv thaiv corrosion yuav tsum tau thiab cov khoom siv qaug zog tsis yog ib qho kev xaiv. Cov kev lag luam ntsig txog suav nrog cov tshuaj kho mob thiab kho hniav, kev lag luam tshuaj lom neeg, kev lag luam aeronautics, thiab kev lag luam saib, qhov twg Phynox yog cov khoom siv rau lub caij nplooj ntoos hlav thiab qag.

Tensile zog mus txog 2800N / mm2 (nyob ntawm txoj kab uas hla) tuaj yeem ncav cuag nrog kev kho cua sov kom tsim nyog. Lub neej ntev flex, muaj peev xwm tiv taus qhov kub thiab txias thiab tus cwj pwm tsis sib nqus kuj yog cov yam ntxwv tseem ceeb uas txhais tau tias Phynox.

Ob qho tib si organic thiab ntxhia acids yog tag nrho lossis yuav luag tsis tuaj yeem tawm tsam Phynox, tso cai rau nws tawm txawm tias qhov zoo tshaj plaws stainless hlau qab nyob rau hauv cov nqe lus ntawm kev tiv thaiv corrosion. Ua ke nrog nws qhov tsis ua haujlwm thaum sib cuag lub cev los yog cov ntaub so ntswg, qhov kev tiv thaiv no ua rau Phynox yog qhov kev xaiv zoo tshaj plaws rau kev cog qoob loo.

Phynox tuaj yeem hardened ntawm qhov kub ntawm 520 degree rau peb teev nyob rau hauv lub tshuab nqus tsev los yog lub qhov cub argon dej nyab. Kev raug huab cua yuav ua rau muaj xim ntsuab kom pom, uas tsis muaj kev cuam tshuam rau cov khoom siv kho tshuab. Cov theem ntawm hardness ntawm tus me nyuam yuav tsum tau xaiv nyob rau hauv ib tug tsim nyog zam, raws li tus me nyuam tus mob cuam tshuam lub siab tshaj plaws nyhuv ntawm kev kho cua sov.

Phynox tuaj yeem yooj yim welded thiab soldered. Txawm li cas los xij, tsuas yog cov khoom ua haujlwm txias tuaj yeem ua kom tawv. Yog li ntawd, cov cheeb tsam uas welded yuav tsum tsis txhob raug cov neeg kho tshuab kev nyuaj siab.

Tshuaj muaj pes tsawg leeg

Lub cev muaj zog

● Ceev 8.30 g/cm3

● Coefficient ntawm thermal expansion (20 ºC - 200 ºC) 12.50 10-6 /K

● Cov peev xwm tshwj xeeb kub (20 ºC) 450.00 J/kgK

● Thermal conductivity (20 ºC) 12.50 W/mK

● Cov hluav taws xob tshwj xeeb (20 ºC) 0.10 Ω mm2 / m

● Young's Modulus (20 ºC) 215.00 GPa

Nta

● Hnub nyoog hardening los ntawm kev kho cua sov tom qab txias txias tsis muaj distortion

● Zoo heev corrosion kuj nyob rau hauv ob peb medias, kev nyuaj siab corrosion cracking thiab tsis muaj hydrogen embrittlement

● Kev qaug zog zoo heev tsis muaj kev so

● Tsis muaj hlau nplaum nyob rau hauv tag nrho cov temper: annealed, txias drawn los yog laus

● Yuav siv tau rau hauv ntau qhov kub thiab txias: los ntawm cov kua helium mus rau 500 degree

● Zoo kawg nkaus biocompatible, nws tau siv rau ntau tshaj nees nkaum tsib xyoos hauv kev cog qoob loo

Phynox Wire Applications thiab Lwm yam lag luam

● Springs

● Cov khoom siv foob

● Cov khoom siv kho mob

● Cheebtsam rau watches

● Aerospace daim ntawv thov

● Petro-chemical daim ntaub ntawv

● Marine engineering
